AEROFLEX STANDARD PIPE INSULATION

AEROFLEX EPDM TUBE INSULATION

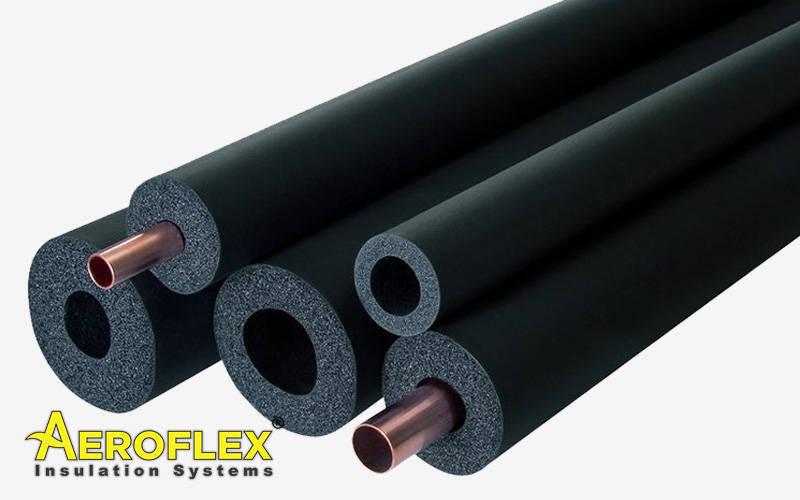

Aeroflex Tube Insulation Standard Product is available from (6mm) ID. up to IPS (165 mm) ID with thickness from (6mm) up to (50mm). Other sizes are also available upon request. Aeroflex Closed Cell Tube Insulation, made of EPDM (Ethylene Propylene Diene Methylene Synthetic Rubber) as its main raw material, is easily installed to pipe or tubing. The factory-applied coating of talcum powder on the thick and smooth inner skin helps facilitate and speed up preassembly line. When applied to existing lines, tubing should be slitted lengthwise and snapped into place. Slitting can be done on the job easily with razors, blades, knives or shears. Cut edges and joints can be sealed with Aeroseal Adhesive (neoprene based contact cement).

AEROFLEX STANDARD 125c SPECIFICATIONS

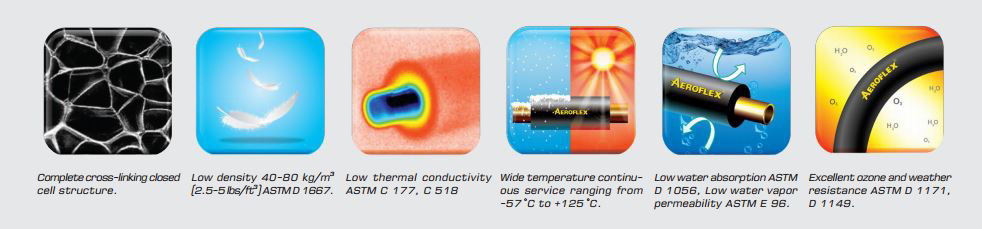

Main Features

  • Synthetic EPDM-based elastomer completely closed-cell structure
  • Excellent UV resistance
  • Supplied in lengths of 2.0 metres
  • CFC-free and PVC-free
  • High weather and ozone resistance
  • Aeroflex Standard up to -57c to 125c
  • Operating temperature

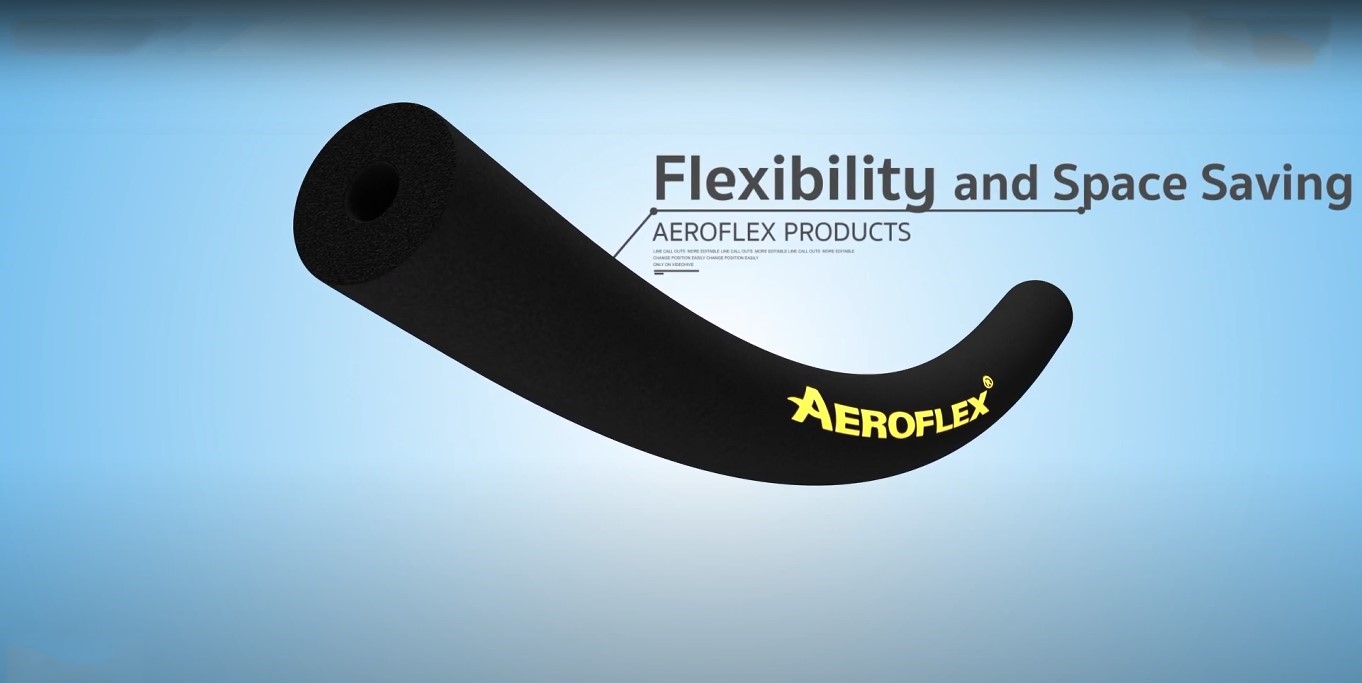

  • Retains flexibility at temperatures as low as -40 degree C
  • Lambda value 0.039 W/m*K or better at +40 degrees C
  • Self-extinguishing according to UP94-VO standard, no fireball drops
  • Does not cause copper or stainless steel corrosion
  • <5 ppb (0.005 ppm) Nitrosamine content

Fire Rating Specifications

  • Aeroflex to Australian Standard AS1530.3 – 1999
  • Ignitability Index – 0 (range 0 – 20)
  • Spread of Flame Index – 0 (range 0 – 10)
  • Heat Evolved Index – 0 (range 0 – 10)
  • Smoke Developed Index – 3 (range 0 – 10)
  • To be read in conjunction with the Building Code of Australia

AEROFLEX EPDM RUBBER INSULATION SYSTEMS

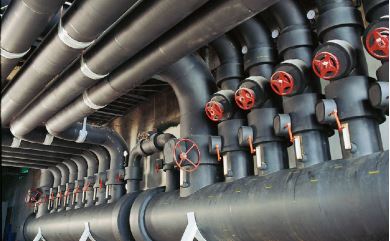

AEROFLEX Insulation can be used on any piping system whether it’s Copper, Steel, Plastic, Solar piping, Hydronic heating piping, HVAC systems, Chilled water pipes and Sound deadening. A large variety of Aeroflex products are available allowing you to choose the product that best fits your needs. All Aeroflex thermal pipe insulation are high performance in relation to operating temperature, thermal conductivity, non-toxicity and moisture absorption. Fire performance, Noise reduction, Resistant to most chemicals, large range of sizes and wall thickness, availability and cost are factors which will usually lead to the selection of a specific grade of Aeroflex pipe insulation. Aeroflex Pipe Insulation is widely specified and used for domestic, commercial, and industrial projects in Australia and overseas by specifiers for small and large scale projects.
