HEAT PUMPS

HEATING - COOLING - HOT WATER

Ambient one of the worlds leading heat pump designers and manufacturers of hydronic heating and chilled water heat pumps. Australian made Ambient heat pumps provide innovative and smart technology products with high efficiency ease of installation and use in mind.

Ambient Comfort Series ASHP-12

ASHP-12kw-3P

Air Source Heat Pump

Reverse Cycle Hydronic Heating

Refrigerant Type: R410A – Charge: 4.8kg

Power Supply: 240v x 1Ph-50Hz

Circuit Breaker Size: 32amp

Heating/Cooling Output Range: 4-14kW

Max kW Input: 4.9kW

Nominal Heating Output: 12kW

Nominal Cooling Output: 10.5kW

IP54

Weight 135kg

Dimensions W. 1185mm x H.1020mm x D.700mm

Nominal Water Flow Rate 0.47 L/S

Operating Temp Range -5°C – 45°C

Sound Pressure Level: 55 Max dB (A) @ 1m

Quite Night Mode dB: 45dB (A) @ 1m

Outdoor Fan Air Flow: 0-4500 m³h 0-4500 m³h

Heating Capacity @ A7°C W35° 12.4Kw/3.45 COP

Heating Capacity @ A15°C W35°C 14.6Kw/4.16 COP

Heating Capacity @ A7°C W42°C 12.2Kw/3.3 COP

Heating Capacity @ A15°C W42°C 14.0Kw/3.6 COP

Heating Capacity @A7°C W55°C 11.1Kw/2.44 COP

Heating Capacity @ A15°C W55°C 12.4Kw/2.68Kw COP

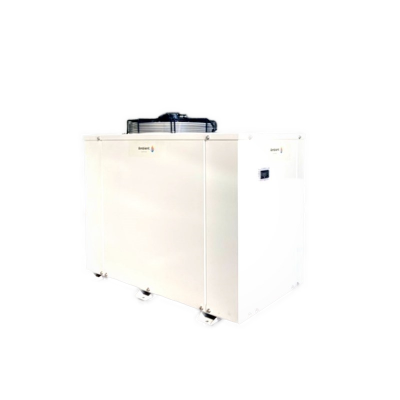

Ambient Comfort Series ASHP-12-3P

ASHP-12kw-3P

Air Source Heat Pump

Reverse Cycle Hydronic Heating

Refrigerant Type: R410A

Charge: 4.8kg

Power Supply: 415v x 3Ph-50Hz

Circuit Breaker Size: 16amp

Heating/Cooling Output Range: 4-14kW

Max kW Input: 4.9kW

Nominal Heating Output: 12kW

Nominal Cooling Output: 10.5kW

IP54

Weight 135kg

Dimensions W. 1185mm x H.1020mm x D.700mm

Nominal Water Flow Rate 0.47 L/S

Operating Temp Range -5°C – 45°C

Sound Pressure Level: 55 Max dB (A) @ 1m

Quite Night Mode dB: 45dB (A) @ 1m

Outdoor Fan Air Flow: 0-4500 m³h 0-4500 m³h

Heating Capacity @ A7°C W35° 12.4Kw/3.45 COP

Heating Capacity @ A15°C W35°C 14.6Kw/4.16 COP

Heating Capacity @ A7°C W42°C 12.2Kw/3.3 COP

Heating Capacity @ A15°C W42°C 14.0Kw/3.6 COP

Heating Capacity @A7°C W55°C 11.1Kw/2.44 COP

Heating Capacity @ A15°C W55°C 12.4Kw/2.68Kw COP

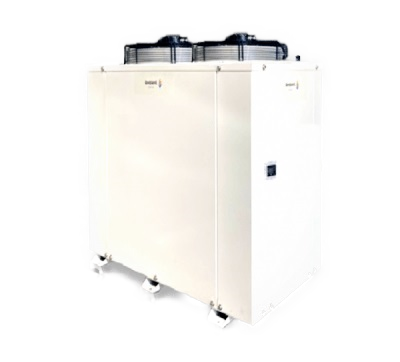

Ambient Comfort Series ASHP-23

Air Source Heat Pump

Reverse Cycle Hydronic Heating

Refrigerant Type: R410A

Charge: 5.6kg

Power Supply: 240v x 1Ph-50Hz

Circuit Breaker Size: 40amp

Heating/Cooling Output Range: 5-23kW

Max kW Input: 6.7kW

Nominal Heating Output: 21kW

Nominal Cooling Output: 18kW

IP54

Weight 170kg

Dimensions W. 1185mm x H.1365mm x D.700mm

Operating Temp Range -5°C – 45°C

Sound Pressure Level: 58 Max dB (A) @ 1m

Quite Night Mode dB: 48dB (A) @ 1m

Outdoor Fan Air Flow 0-8000m³h 0-8000 m³h

Heating Capacity @ A7°C W35° 21Kw/3.8 COP

Heating Capacity @ A15°C W35°C 23.8Kw/4.10 COP

Heating Capacity @ A7°C W42°C 21Kw/3.4 COP

Heating Capacity @ A15°C W42°C 23.2Kw/3.5 COP

Heating Capacity @A7°C W55°C 18.8Kw/2.85 COP

Heating Capacity @ A15°C W55°C 20Kw/3.04Kw COP

Ambient Comfort Series ASHP-23-3P

Air Source Heat Pump

Reverse Cycle Hydronic Heating

Refrigerant Type: R410A

Charge: 5.6kg

Power Supply: 415v x 3Ph-50Hz

Circuit Breaker Size: 20amp

Heating/Cooling Output Range: 5-23kW

Max kW Input: 6.7kW

Nominal Heating Output: 21kW

Nominal Cooling Output: 18kW

IP54

Weight 170kg

Dimensions W. 1185mm x H.1365mm x D.700mm

Operating Temp Range -5°C – 45°C

Sound Pressure Level: 58 Max dB (A) @ 1m

Quite Night Mode dB: 48dB (A) @ 1m

Outdoor Fan Air Flow 0-8000m³h 0-8000 m³h

Heating Capacity @ A7°C W35° 21Kw/3.8 COP

Heating Capacity @ A15°C W35°C 23.8Kw/4.10 COP

Heating Capacity @ A7°C W42°C 21Kw/3.4 COP

Heating Capacity @ A15°C W42°C 23.2Kw/3.5 COP

Heating Capacity @A7°C W55°C 19.8Kw/2.85 COP

Heating Capacity @ A15°C W55°C 20.4Kw/3.04Kw COP

Only the best products make it into Ambient heat pumps utilizing the latest BLDC Variable Speed Copeland Scroll Compressor matched with Carel speed drive, electronic refrigerant expansion valve, variable speed EC fans, microprocessor controls with on board user interface. Heat pump software has been custom designed to manage compressor envelope and full system modulating range to the highest efficiency possible.  Ausgeothermal have coupled quality components to Water Marked heat exchangers and cased in our heavy duty galvanized and powder coated heat pump unit casings. For ease of installation your Ambient Comfort Series heat pump is fully commissioned, and quality tested prior to dispatch from their Victorian manufacturing facility. Equipped with hydronic circulation pump expansion tank pressure relief valve, auto fill kit and fill point, 1.5metre buffer tank or supply water temperature sensors are supplied with the heat pump. Ambient Comfort Series on-board controls are standard from factory and are pre-set ready for use. The heat pump can also be controlled via a wide range of external control devices including standard room controls, Ambient Hub Series by AusGeothermal automated control system, Modbus, BACnet, SNMP, BMS. The onboard controls have a wide range of functions and can be accessed onsite to provide technical data for maintenance, customised set-ups as well as scheduling functions, quiet night mode function and alarm monitoring.
