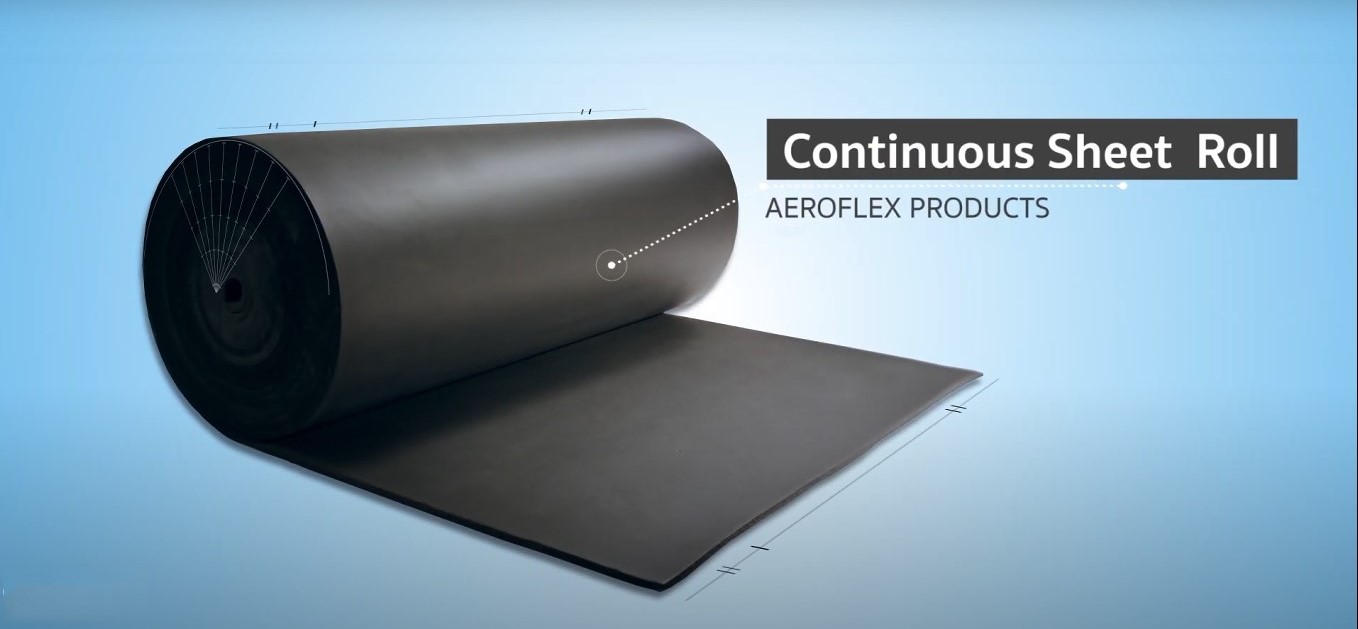

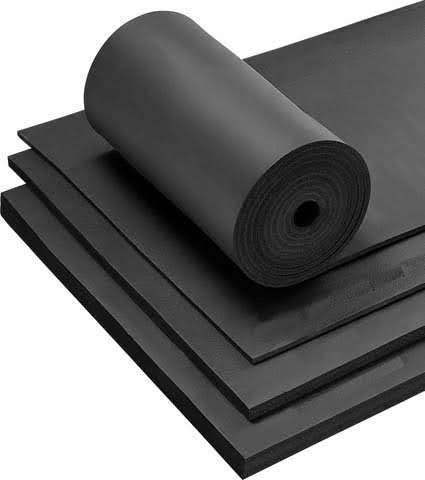

AEROFLEX SHEET ROLLS

Available in continuous roll form, sheet rolls are available from 10mm to 50mm thickness at 1 metre wide and 2 to 15 metres long depending on thickness. All insulation sheets are made from the same materials as Aeroflex tubing. Besides being the ideal insulation for chilled and hot water piping, Aeroflex is also used as insulation for all kinds of ducting systems. Not only saving energy, but also serves as an acoustic absorber and reducing noise generated by equipment, air movement, and the expansion and contraction noise of sheet metal duct. Aeroflex has been favoured over fibrous insulating materials mainly because of the possible dangers and health hazards caused by fibrous materials. Aeroflex made from special modified elastomeric material ensures long service life and can be safely handled without any danger of skin irritation. It is also not hazardous to health, so no special precaution is needed. Aeroflex has superior resistance against moisture, fungus growth, vermin and rodent attack. Not messy and easy to install, it is also neat in appearance of its smooth surface. With low water absorption and low moisture transmission, Aeroflex can be used both as an internal and external insulation for all kinds of ducting systems.



ROLL SIZES

Shop Online

10mm x 1m x 15m
13mm x 1m x 11m
20mm x 1m x 7m
25mm x 1m x 5m
32mm x 1m x 4m
50mm x 1m x 2m


AEROFLEX ROLLS 125c SPECIFICATIONS

 Main features

  • High quality synthetic EPDM-based elastomer completely closed-cell structure
  • Excellent UV resistance
  • Thickness from 10 to 50mm
  • Supplied in lengths from 2m to 15m depending on thickness
  • CFC-free and PVC-free
  • High weather and ozone resistance
  • Aeroflex Standard up to -57c to 125c
  • Operating temperature
  • Retains flexibility at temperatures as low as -40 degree C
  • Lambda value 0.039 W/m*K or better at +40 degrees C
  • Self-extinguishing according to UP94-VO standard, no fireball drops
  • Does not cause copper or stainless steel corrosion
  • <5 ppb (0.005 ppm) Nitrosamine content

      Fire Rating

  • Aeroflex to Australian Standard AS1530.3 – 1999
  • Ignitability Index – 0 (range 0 – 20)
  • Spread of Flame Index – 0 (range 0 – 10)
  • Heat Evolved Index – 0 (range 0 – 10)
  • Smoke Developed Index – 3 (range 0 – 10)
  • To be read in conjunction with the Building Code of Australia

AEROFLEX EPDM RUBBER INSULATION SYSTEMS

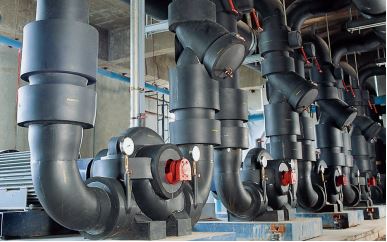

AEROFLEX Insulation can be used on any piping system whether it’s Copper, Steel, Plastic, Solar piping, Hydronic heating piping, HVAC systems, Chilled water pipes and Sound deadening. A large variety of Aeroflex products are available allowing you to choose the product that best fits your needs. All Aeroflex thermal pipe insulation are high performance in relation to operating temperature, thermal conductivity, non-toxicity and moisture absorption. Fire performance, Noise reduction, Resistant to most chemicals, large range of sizes and wall thickness, availability and cost are factors which will usually lead to the selection of a specific grade of Aeroflex pipe insulation. Aeroflex Pipe Insulation is widely specified and used for domestic, commercial, and industrial projects in Australia and overseas by specifiers for small and large scale projects.
