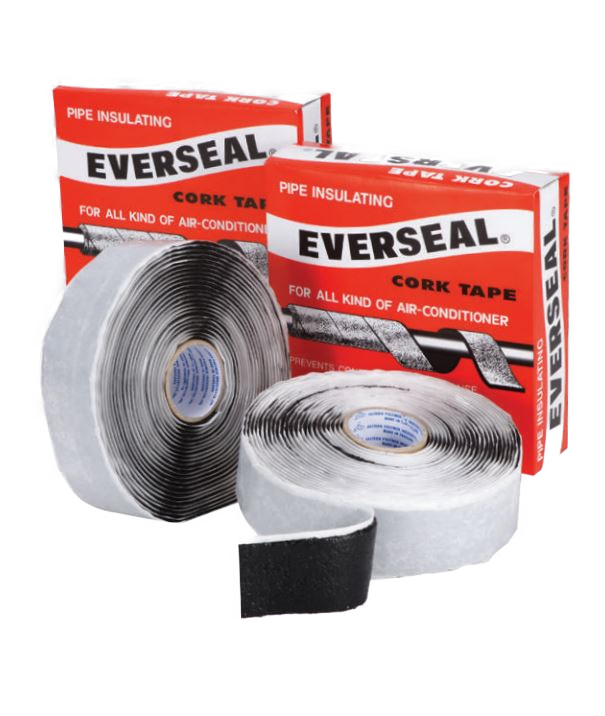

EVERSEAL CORK TAPE

Aeroflex Everseal Cork Tape is specially designed for all types of climates. It insulates cold pipes for all kinds of air conditioners used in cars and homes, freezers and refrigerators. Helps stop condensation problems. Ideal for retarding heat gained in cold pipes and preventing heat loss in hot pipes. Aeroflex Everseal Insulation Tape is an effective sound dampening material and can also be used for gasketing purposes. Aeroflex Everseal Insulation Tape sticks to all kinds of dry metals, It seals tightly without drying. It is flexible and will not shrink or melt within the service temperature of – 29c to 93c.

EVERSEAL CORK TAPE SPECIFICATIONS
Specifications Physical Properties
Standard Size 3mm x 50mm x 9.1m +/- 3% per roll – 1/8″ thick, 2″ wide and 30′ long per roll
Composition Polymer based material containing synthetic rubbers, asaphalt and approximately 50% cork by volume.
Texture Grainy rubber-like consistency
Thickness 3mm
Solid Contents 99.8%
Asbestos No
Color Black
Odor Only slight odor. Can be used without danger of contamination.
Thermal Conductivity 0.60 BTU/hr/sq. ft/ °F/ in at 75 °F
Ozone Resistance Good
Temperature Range -20 °F ( – 20 °C) to + 200 °F ( + 93 °C)
Moisture Vapor Transmission 0.02 perms. (ASTM D – 1056)



EVERSEAL PREVENTS PIPE CONDENSATION

Aeroflex Everseal Cork Tape

Ambient Temperature

Temperature  & % RH

77 F (25 C) & 50% RH

85 F (29 C) & 70% RH

Pipe Temperature

10C (50 F)

Double Layer

Double Layer

Plus Double Layer

Pipe Temperature

0C (32F)

Triple Layer

Triple Layer

Plus Triple Layer

AEROFLEX EPDM RUBBER INSULATION SYSTEMS

AEROFLEX Insulation can be used on any piping system whether it’s Copper, Steel, Plastic, Solar piping, Hydronic heating piping, HVAC systems, Chilled water pipes and Sound deadening. A large variety of Aeroflex products are available allowing you to choose the product that best fits your needs. All Aeroflex thermal pipe insulation are high performance in relation to operating temperature, thermal conductivity, non-toxicity and moisture absorption. Fire performance, Noise reduction, Resistant to most chemicals, large range of sizes and wall thickness, availability and cost are factors which will usually lead to the selection of a specific grade of Aeroflex pipe insulation. Aeroflex Pipe Insulation is widely specified and used for domestic, commercial, and industrial projects in Australia and overseas by specifiers for small and large scale projects.
